Key Features
- Accurate, safe and ergonomic handling
- Quality improvement – less finishing and repairing
- Essential for automated welding of cylindrical work-pieces
- EN safety compliance and CE-marked
- Rail car options to enhance production material flow

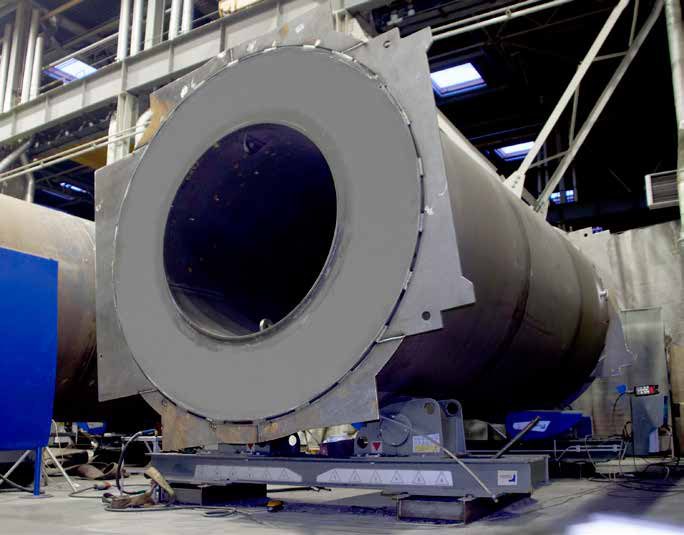

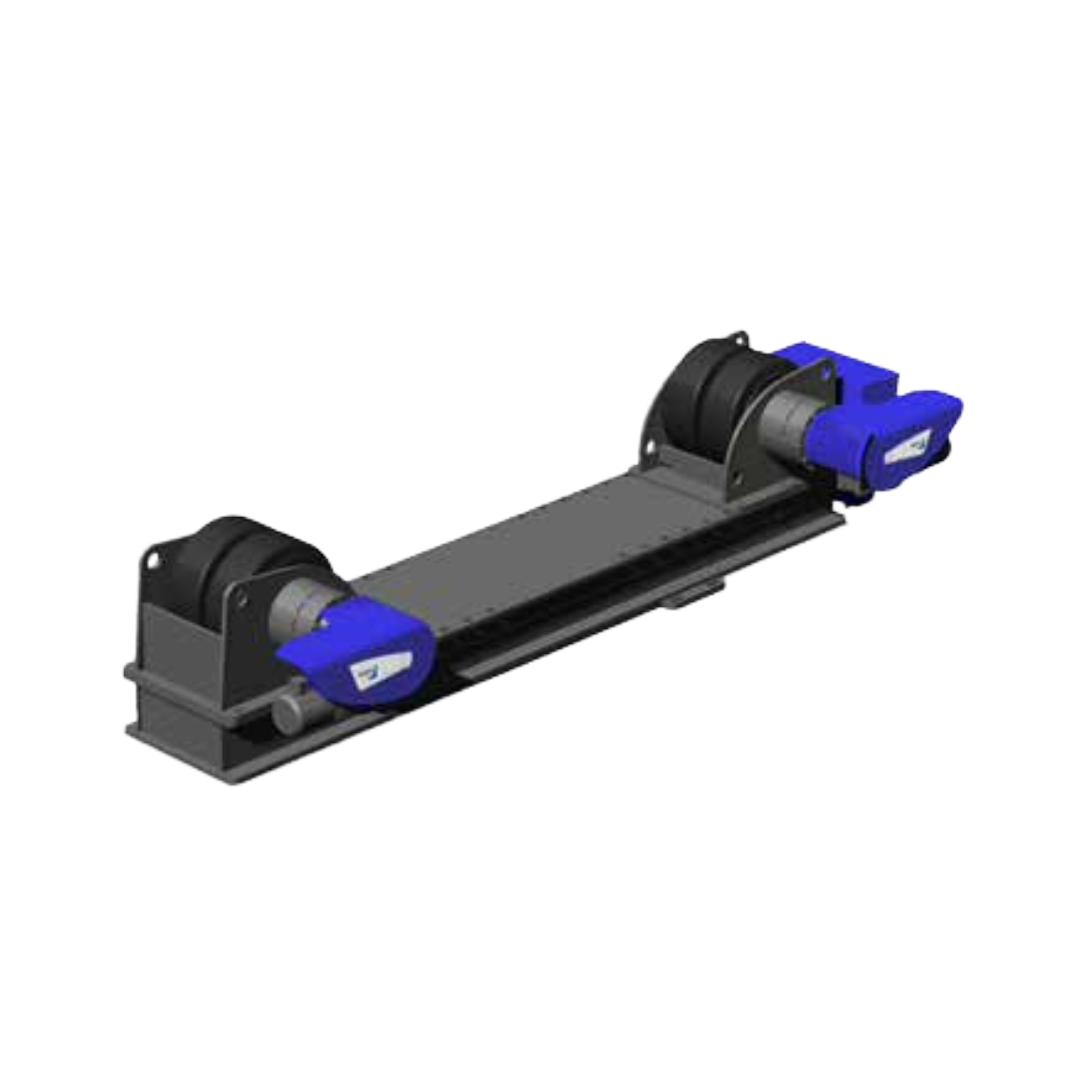

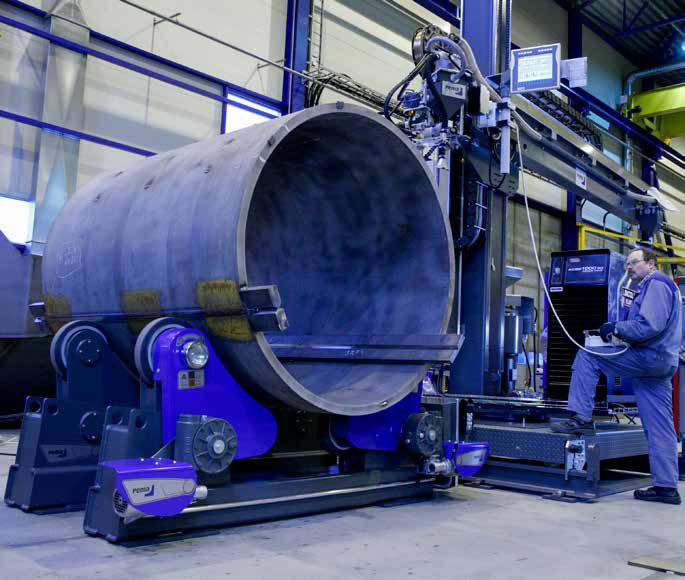

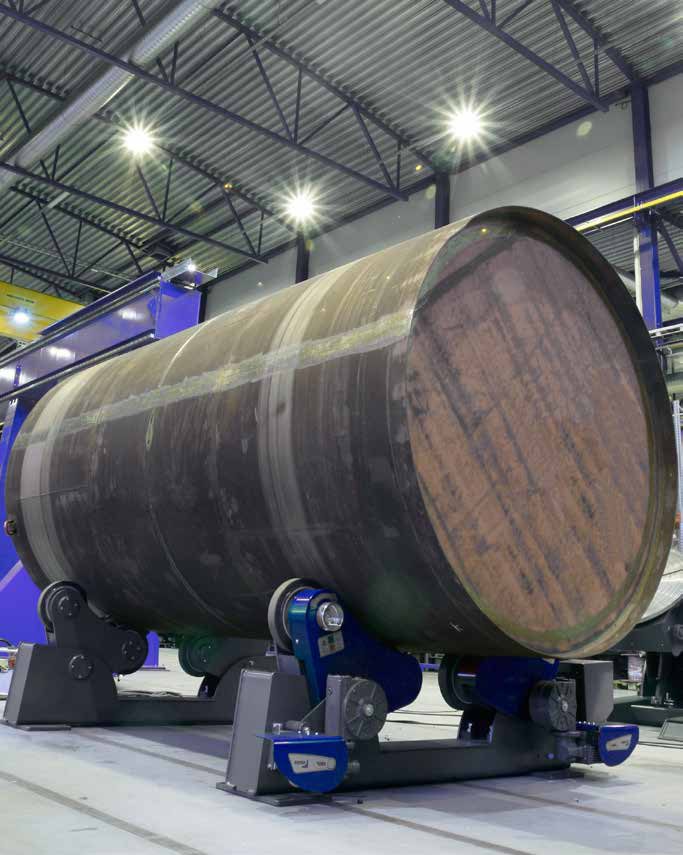

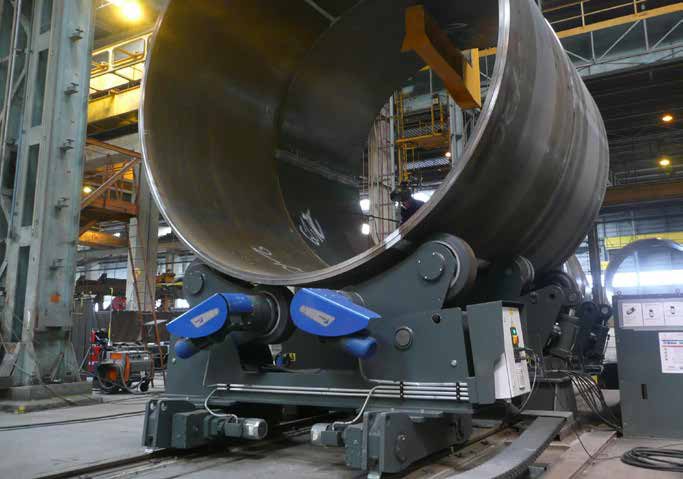

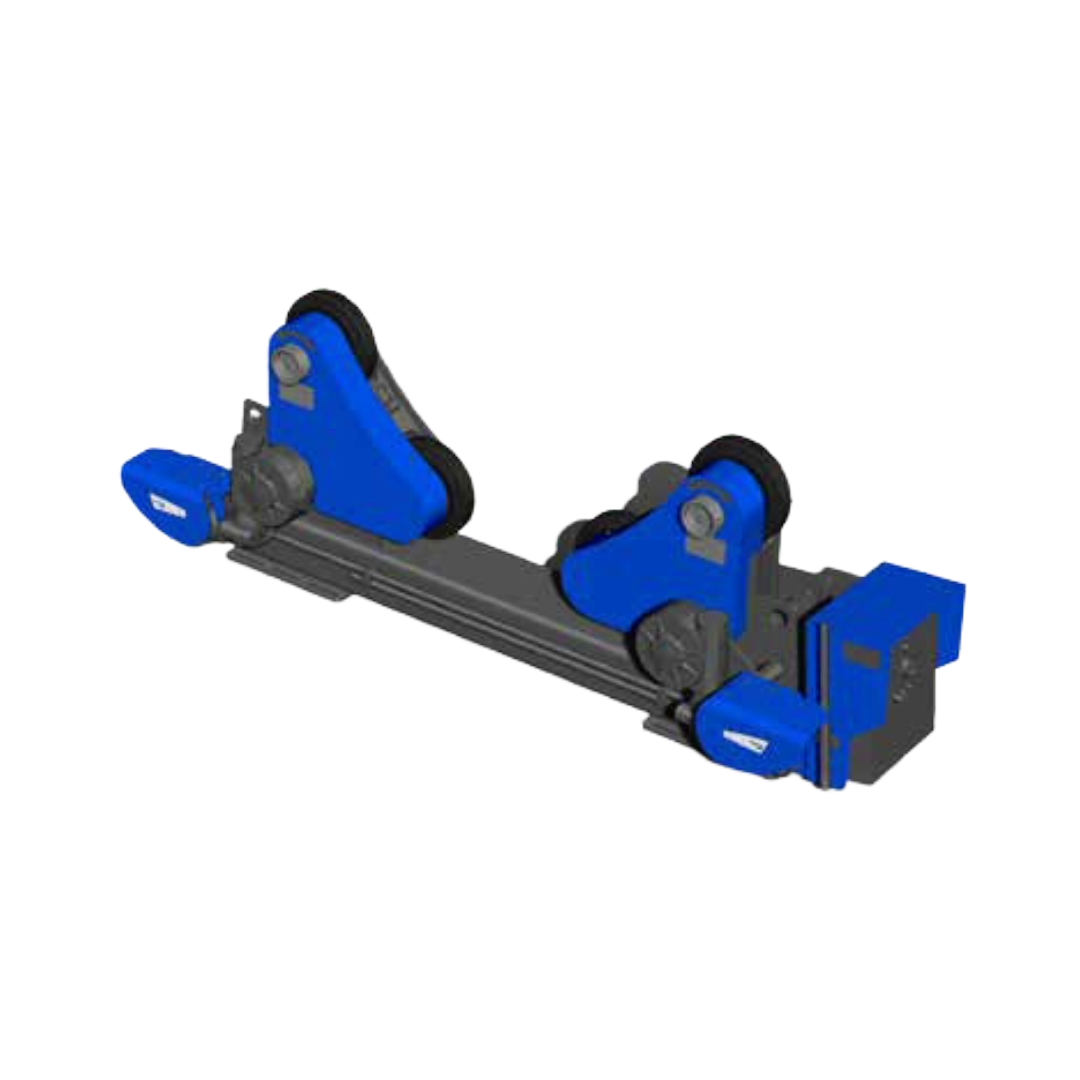

PEMA Rollerbeds assist in handling containers, tubes, pipes and other revolving work-pieces during welding, painting, blasting and assembly. They enable optimal positioning, reduce setup and handling times, and are designed for demanding machine shop environments with EN safety compliance. Loading capacities range from 12 to 1 600 tons.
| N Series | |||||
| Parameter | N12 | N25 | N50 | N75 | N150 |
| Max load (ton/section) drive | 6 | 12.5 | 25 | 37.5 | 75 |
| Max load (ton/section) idler | 6 | 12.5 | 25 | 37.5 | 75 |
| Rolling capacity (ton) | 18 | 37.5 | 75 | 112.5 | 225 |
| Max rotation force (kN) | 8.5 | 18 | 40 | 50 | 110 |
| Rotation speed range (mm/min) | 100–2000 | 100–2000 | 100–2000 | 100–2000 | 100–2000 |
| Diameter range min–max (mm) 50% load | 250–5000 | 250–5000 | 550–5000 | 600–5500 | 600–7500 |
| Diameter range min–max (mm) 100% load | 250–5000 | 400–5000 | 800–5000 | 1100–5500 | 1100–7500 |
| Roller material | PU | PU | PU | PU | PU |
