Key Features
- Synergic and double pulsed MIG/MAG capability
- 4-roll heavy-duty drive for consistent wire feed
- Fan-On-Demand™ cooling to reduce noise and contaminants
- Trigger program switch (recall up to 4 presets)
ZAMM059015052

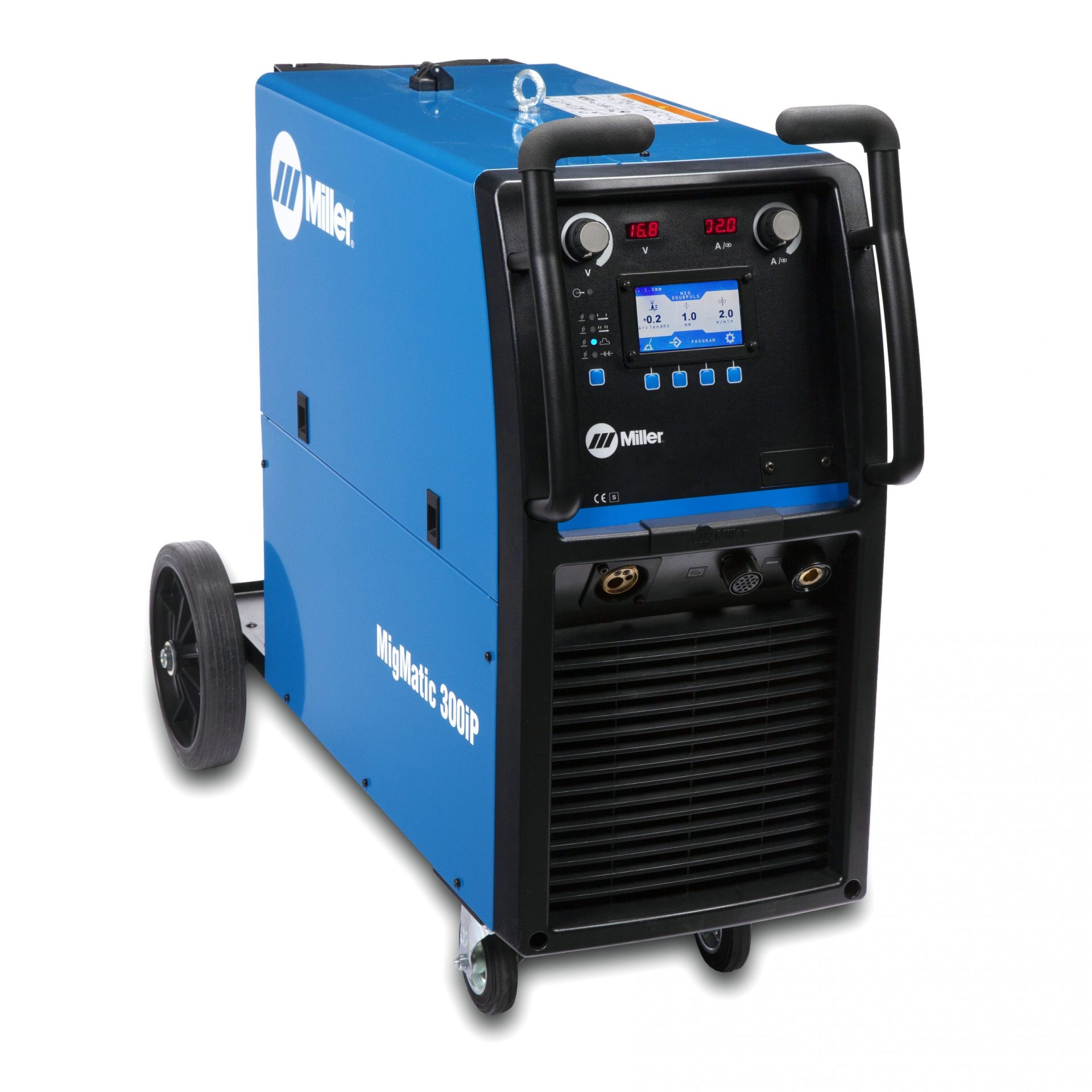

Miller MigMatic® 300iP Synergic Pulsed MIG/MAG System featuring a heavy-duty drive mechanism capable of consistent and precise wire feeding regardless of your choice of wire. The Pulse MIG/MAG welding capability makes the system ideal for aluminium applications and for thin plate mild and stainless-steel welding. The user interface is extremely easy to use and never before has it been so quick and straight forward to achieve excellent welding performance.
| Input Power | 400 V, 3-phase (50/60 Hz) |
| Voltage Range (CV) | 13–35 V |
| Current Range | 15–300 A |
| Rated Output @ 40% | 300 A / 29 V |
| Max. Output Amperage | 300 A |
| Open-Circuit Voltage | 70 V DC |
| IP Rating | IP23S |
| Dimensions (mm) | H 830 × W 470 × D1070 |
| Weight(kg) | 57 |
