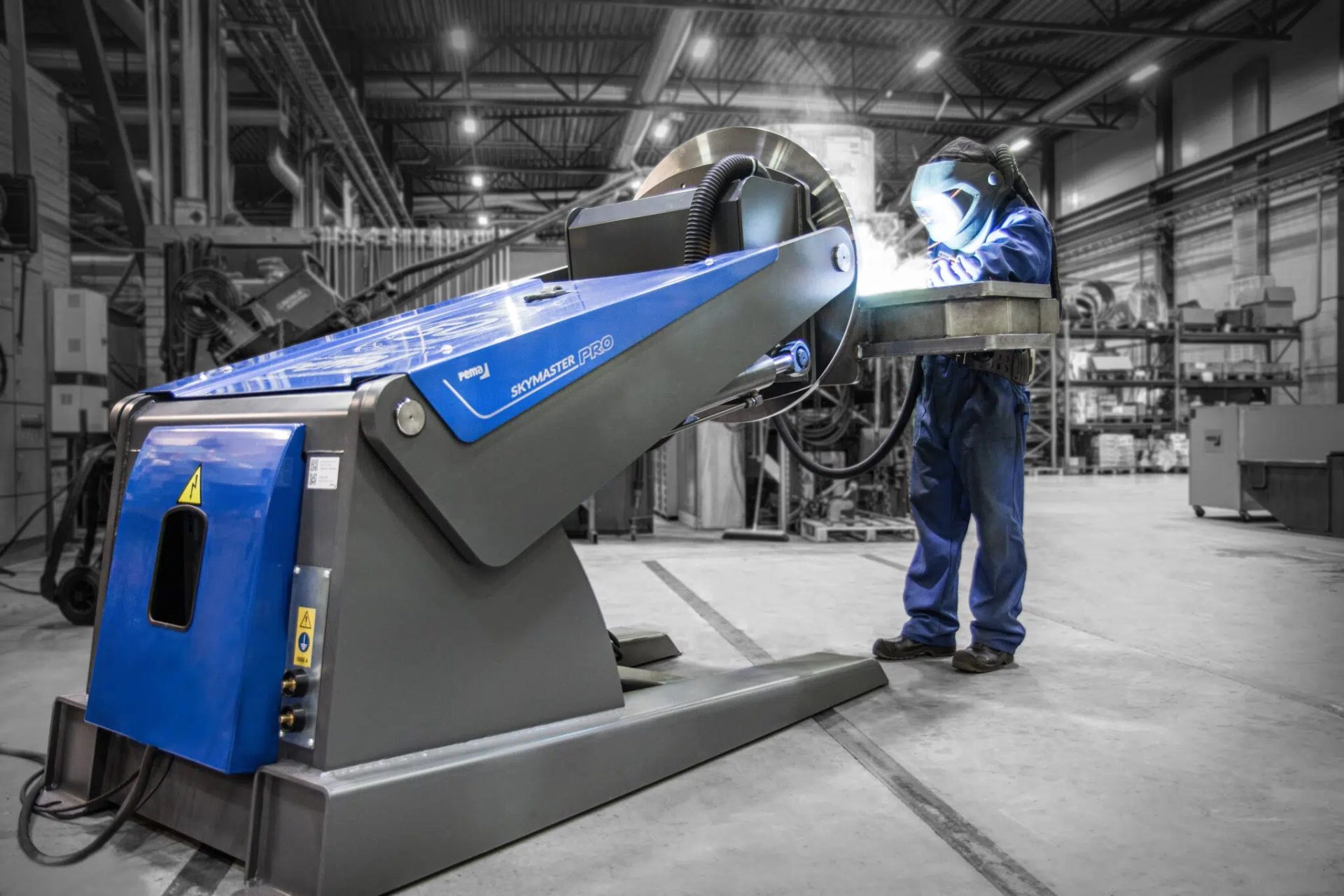

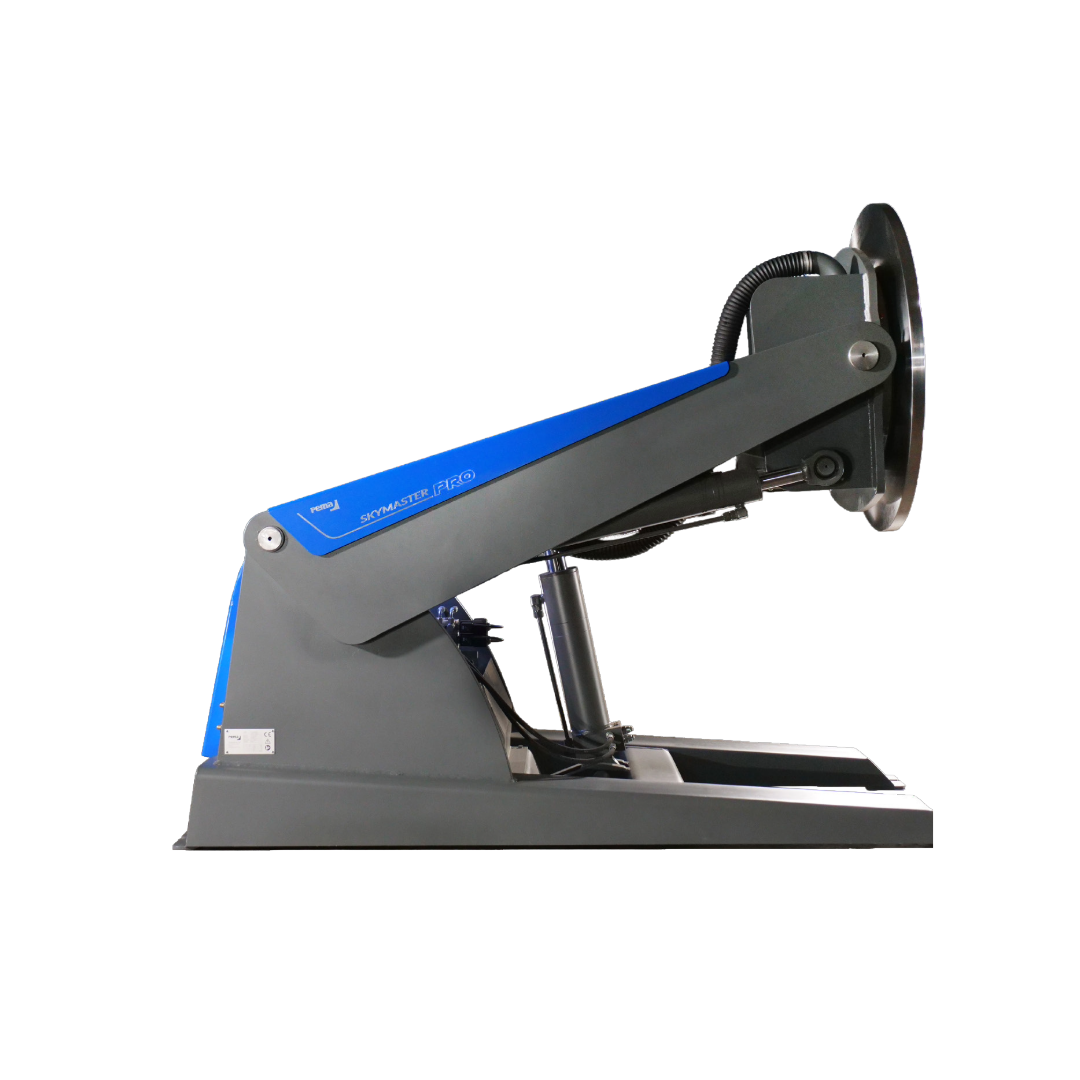

PEMA Skymaster PRO positioner for extra-heavy work. The height, tilt and rotating speed of work pieces are fully adjustable and programmable. – Optimal and repeatable position for ergonomics, capacity increase and simulated movements for safety. As a result, welding productivity can be raised significantly compared to conventional positioners. – PRO features are available with mobile, tablet and laptop via WiFi. PRO application runs on an internet browser and includes e.g. programming for the positioner, machine diagnostic, maintenance book, and possibility to add notes. – Hundreds of man-hours saved yearly compared to manual work-piece handling. With PEMA Skymaster PRO these hours can be used on actual productive work. – Always the optimal dimensions for your product on purpose. Skymaster PRO series from 750 kg up to 35,000 kg
| Max. load (N) | 35,000 |
| Rotation speed (rpm) | 0,06-1,3 |
| Max. rotational torque (Nm) | 2800 |
| Tilting torque (Nm) | 7500 |
| Tilting / angle (°) | Hydr /135 |
| Tilting time 0-max angle (s) | 30 |
| Table plate diameter (mm) | 950 |
| T-slots on table plate | 4 x M20 DIN508 |
| Integrated grounding, max. current (A) | 700 |
| Height min-max (mm) | 980 – 1750 |
| Width (mm) | 1030 |
| Length (mm) | 2340 |
| Weight (kg) | 1700 |
| Main supply cable length (m) | 12 |
| Main supply connection 50 Hz | 3x400VAC+(N)+PE |
| Power (A) | 16 |
