TPS STD Mig 251

CTPS004785D

TPS STD Mig 251

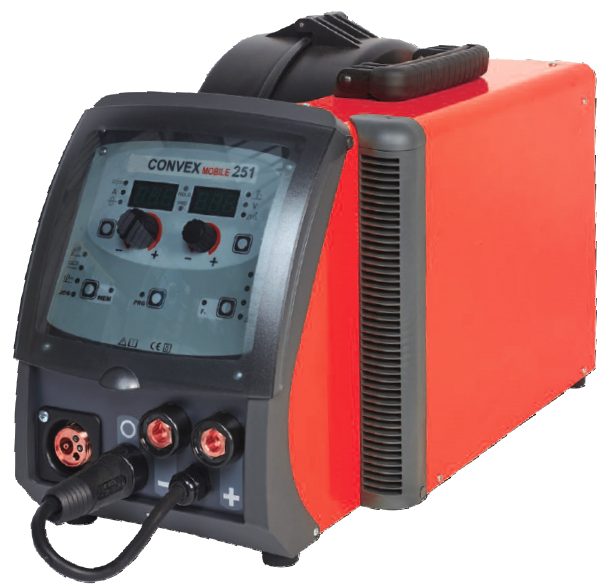

Powerful welding equipment in the size of just one wire feeder unit: this is the main peculiarity of CONVEX MOBILE series, innovative multiprocess synergic power sources for welding in MIG/MAG, MMA and TIG with “Lift” mode. Versatile, easy-to-carry and user friendly, CONVEX MOBILE equipment are greatly appreciated, also thanks to their high technological conception, anywhere high quality welding is required and are ideal for on-site work, maintenance job, car body repair and light fabrication work. CONVEX MOBILE PULSE, because of its additional Pulse and Dual Pulse processes, grants high quality performance on all materials and particularly on stainless steel, zinc coated and aluminium, by greatly minimizing any reworking job caused by spatters. CONVEX MOBILE 251, with single phase input power, have PFC facility which optimizes the amount of energy consumption by allowing their use, at maximum power, on 16 A fuse mains and with power generator sets without any problems

Submit an Enquiry

Key Features

  • Digital control with synergic curves preset according to used type of material, gas and wire • User friendly and easy-to-use parameters’ and welding programs’ selection and recalling
  • Built-in polarity changeover feature for most common gas and gasless wires
  • Suitable for Ø 300 mm wire spools
  •  Professional double groove feeding mechanism with 4 rolls of Ø 37 mm.
  • “Energy saving” function to operate the power source cooling fan only when necessary
  •  Initial and final crater control
  •  Possibility to use Up/Down torches

Specifications

Dimensions (mm)  L 650 x W 300 x H 388
Weight (kg)  21
Input Power @ I2Max kVA  415V
Current Range  MIG/MAG 10-250A

TIG 5-250A

MMA 10-250A
