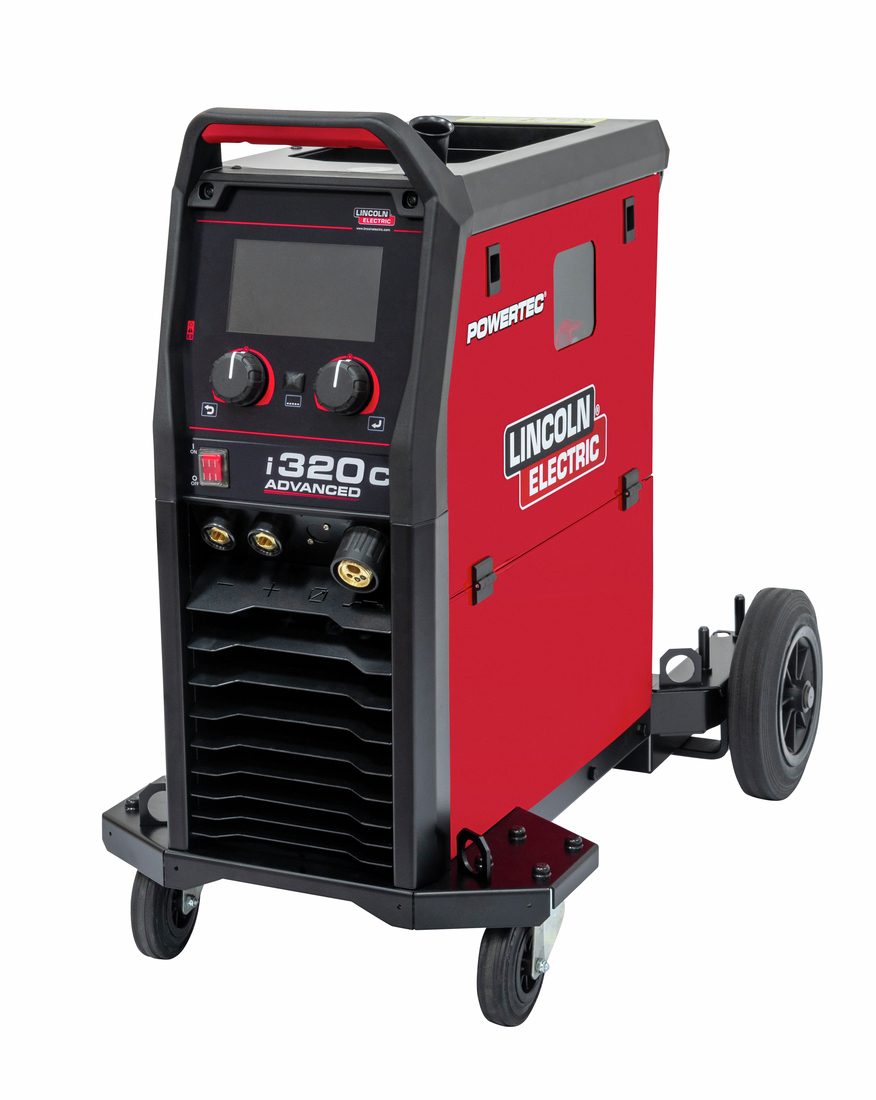

Lincoln Powertec® i320C

The Lincoln Powertec® i320 is a robust industrial MIG welding power source designed for high-quality welding in fabrication, manufacturing, and maintenance environments. Built with Lincoln Electric’s proven engineering, the i320 delivers smooth arc performance, excellent control, and dependable operation for demanding production work.

Submit an Enquiry

Key Features

  • Easy setting by selecting process & material thickness
  • Visualisation of useful information (ARCFX™ joint configuration, welding defects…)
  •  Multi-language navigation menu
  • ARC INITIATION – Repeatable arc ignition with outstanding arc characteristics.
  • ARC STABILITY – Excellent arc stability, ensuring a smooth droplet transfer, with reduced spatter.
  • ARC DYNAMICS- Rapid parameter adjustment allowing variability under welding conditions

Specifications

Main Power Supply  3 x 400 V (±15%) 50/60Hz
Effi ciency at max current  88%
Idle Power (W)  <25W
Duty cycle (@ 40 °C) @ 40%

@ 60%

@ 100%



320 A

250 A

195 A

Current range max  10 A / 320 A
Dimensions (LxWxH)  635 x 300 x 535 mm
Weight (kg)  66
