Key Features
- Professional inverter for daily MIG/MAG and MMA
- 4-roll wire drive with EURO gun socket
- Large LED display; simple synergic setup
- Undercarriage with gas bottle space
LK14380-1

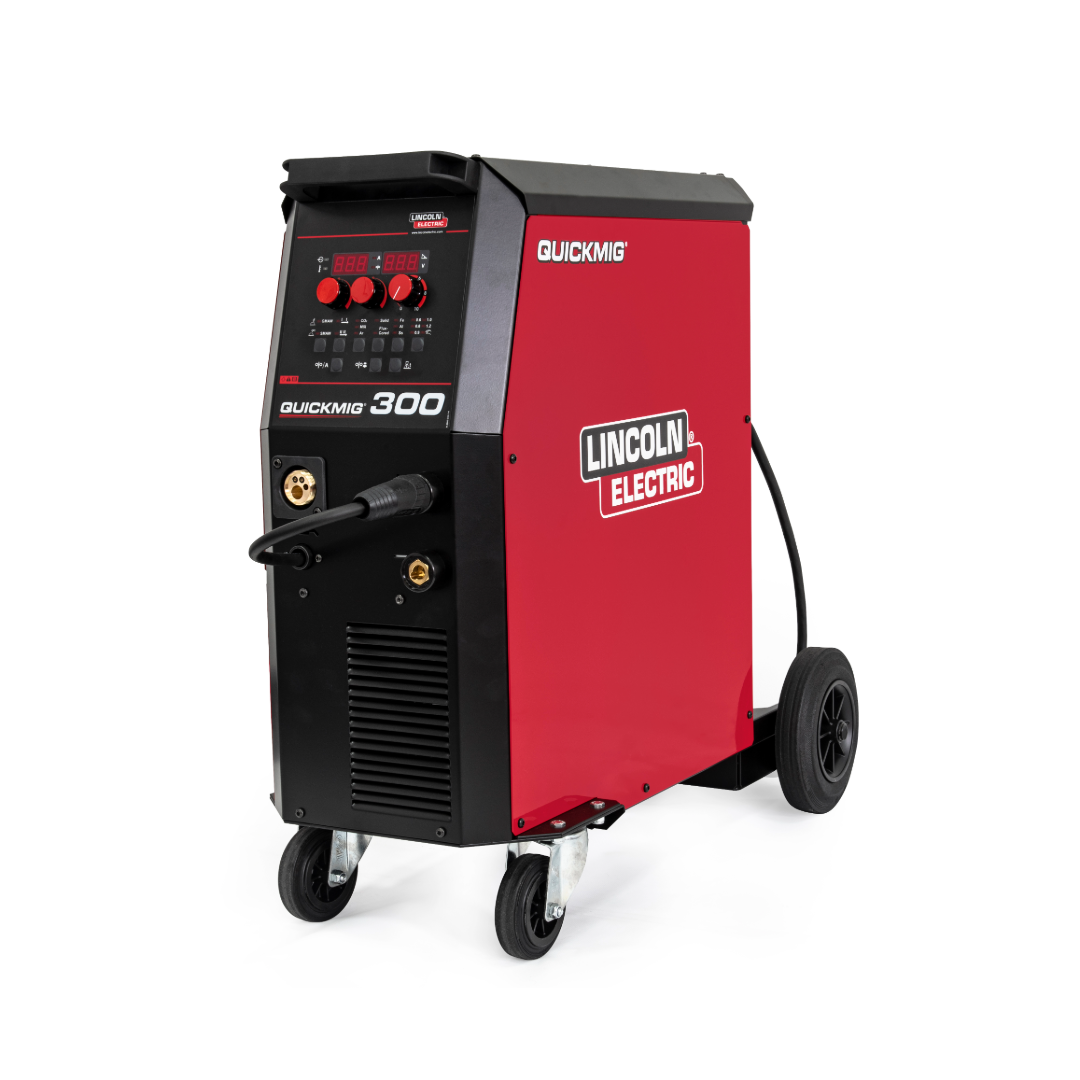

The QUICKMIG® COMPACT RANGE is a professional inverter, designed for daily use, ensuring optimal MIG/MAG (GMAW/FCAW) and MMA (SMAW) welding performance. Products in the range are easy to use and set-up and allow welding of a small size and light construction, or repair vehicle and light agricultural machinery. The range consists of 250A and 300A power sources with large LED displays and easy to set-up user interface. QUICKMIG includes as standard 4-rolls wire drive system for perfect feedability of different types of material, EURO socket for MIG gun connection and undercarriage with wheels and space on the back for the gas bottle installation.
| Input Power | 400 V, 3-phase (50/60 Hz) |
| Rated Output | 300 A @ 35% |
| Output Range | 50–300 A |
| Wire Feed Speed | 1.5–18 m/min |
| Weight (kg) | 50 |
| Dimensions (mm) | H 760 × W 395 × D 830 |
| IP Rating | IP23 |
