Key Features
- 2 tn payload
- No foundation needed
- Movable production unit
- Small factory footprint
- Additional robot travel 2,600 mm
- Yaskawa AR2010 robot arm
- Linocoln welding package

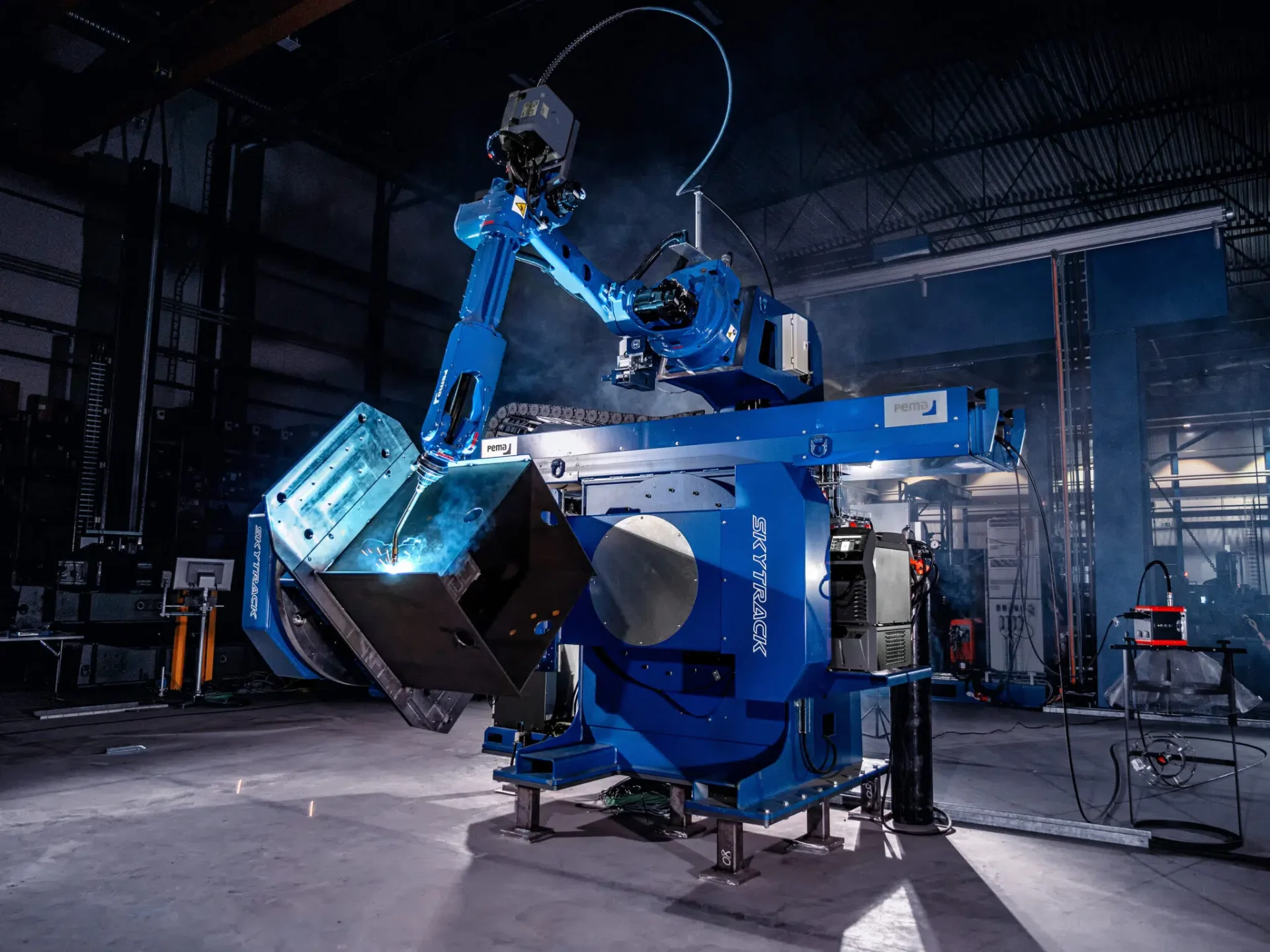

PEMA Skytrack is a compact robot welding solution designed for workshops seeking increased production flexibility and scalability. Thanks to the small factory footprint, the solution is fast to install and easy to integrate into production routines. Robotic welding has never been this easy – just plug and weld.
| Max. load (kg / metric tons) | 2 000 / 2 MT |
| Max. rotation speed (rpm) | 44 |
| Max. rotational torque (Nm) | 4 000 |
| Max. tilting speed (rpm) | 44 |
| Max. tilting torque (Nm) | 4 000 |
| Robot model | Yaskawa AR2010 |
| Max. robot travel speed (m/min / in/min) | 15 / 50 |
| Table plate diameter (mm / in) | 950 / 37 |
| T-slots on table plate | 4xM20 |
| Footprint size (light curtain) (mm / in) | 4 800 x 5 200 / 174 x 204 |
| Footprint size (safety door) (mm / in) | 4 800 x 4 400 / 174 x 173 |
| Weight (kg / lbs) | 6 300 / 14 000 |
| Main supply connection | 3x400VAC + N + PE, 50Hz / 3x480VAC + PE, 60Hz |
| Power (A) | 32 |
| Power source | Lincoln S500 / Fronius TPSi500 |
