Key Features
- Continues electronic control of motor output and speed.
- Drilling with core and twist drills, countersinking, reaming & thread cutting.
- Two- stage gear unit, non-destructive with oil bath gear box
ZD060MD35L

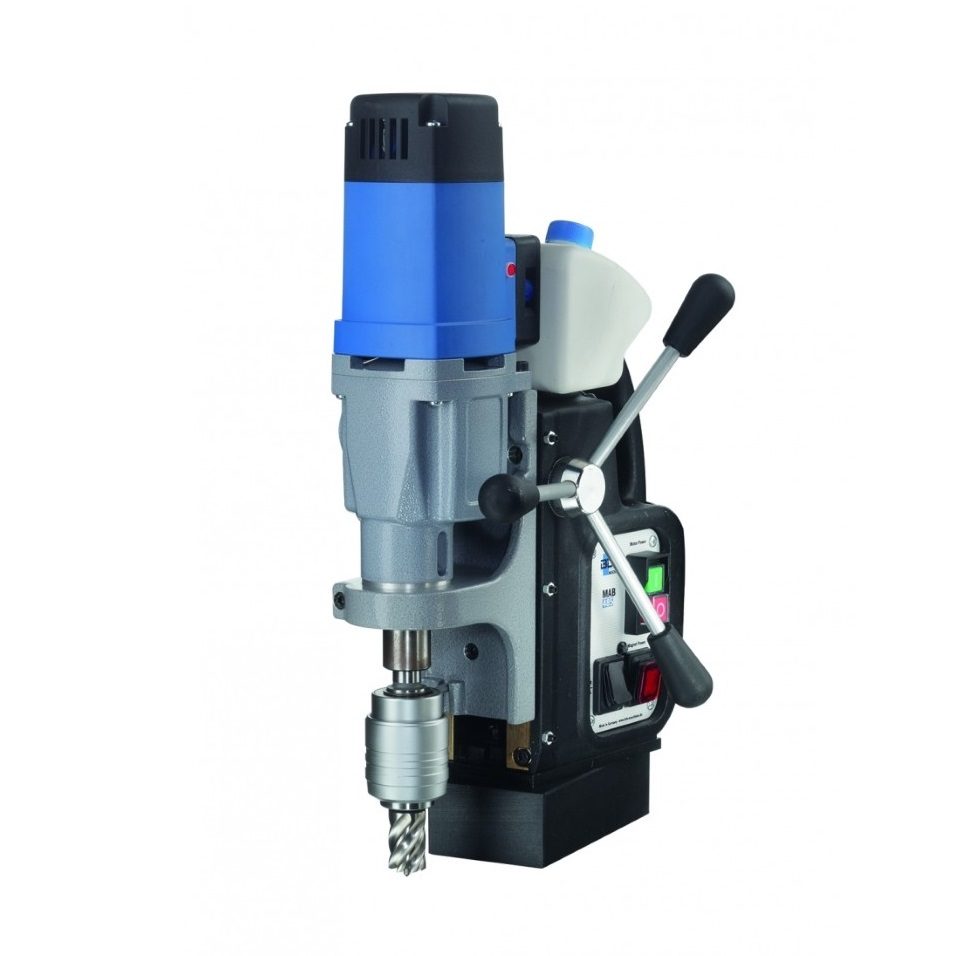

The AMB 485 is a popular, heavy-duty, portable magnetic drilling machine for professionals, featuring a powerful 1150W motor, variable speeds (50-250/100-450 RPM), a 2-speed oil-bath gearbox, and a strong magnetic base for drilling steel; it’s known for versatility in core drilling (up to 40/50mm), twist drilling (up to 18mm), reaming, and tapping, with safety features like a magnet indicator, overheat protection, and internal cabling.
| Motor Output | 1150 Watt |
| Voltage | 230V AC, 50-60 Hz |
| Stroke | 160mm |
| Magnet Size (mm) | 84 x 168 x 41.5 |
| Weight (kg) | 13 |
| Morse Taper | MT 2 |
| Speed Range 1 | 50-250min⁻¹ |
| Speed Range 2 | 100-450 min⁻¹ |
