Key Features
- Welding Specific Versatility

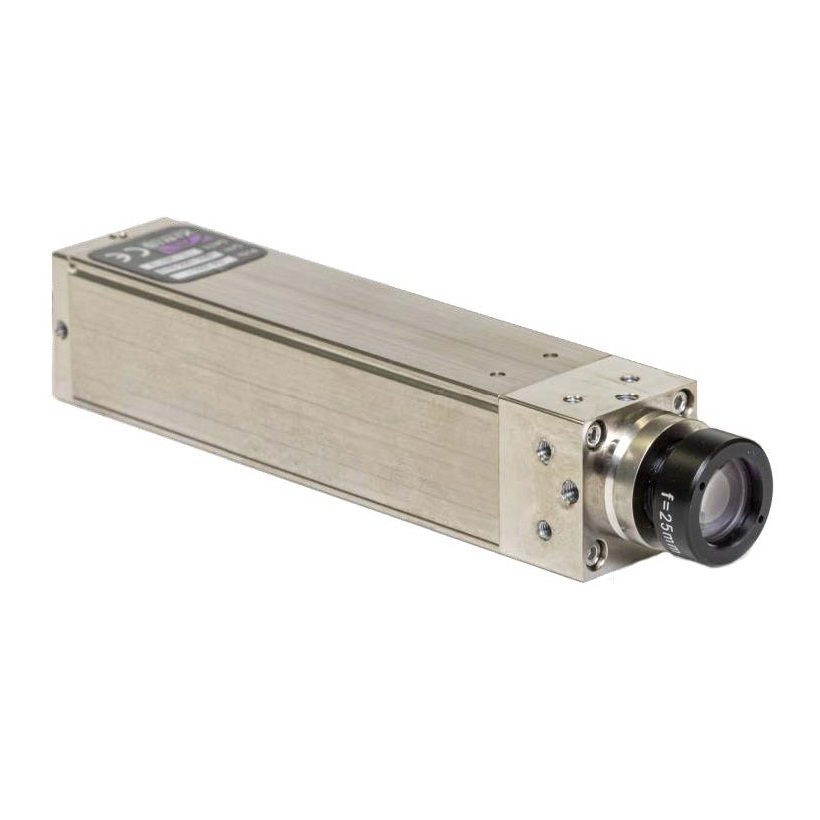

Every feature of the XVC-710 is designed to maximize usability and versatility for the welding industry, including a lightweight, compact body size, angled head variants, onboard FPGA and multiple compact optics configurations using industry standard S-Mount lenses.
- Software
The XVC-710 camera is fully compatible with all Xiris WeldStudio™ software suites that include numerous powerful camera and image processing tools to fully optimize, analyse, record and playback welding processes.
- Angled Head
Due to the flexible design of the electronics, the camera can be built so that the optics can be angled relative to the camera body, allowing the camera to fit in tight locations. This is very useful to help minimize welding head size in automated welding equipment. Optical Design Services can be provided upon request.
- High Dynamic Range
With a full 1280 x 1024 pixel resolution and High Dynamic Range (HDR) in excess of 140 dB, the XVC-700 is able to acquire detailed images with a greater range of tonal detail than any standard camera. Operators can see the bright weld arc without saturation as well as darker surrounding background features like the weld seam, melt pool, torch tip and shielding gas. The Colour XVC-710 is useful for welding processes such as GTAW, Plasma and GMAW where a colour image may provide additional information.
- GigE Interface with PoE
A single, robust M12 Ethernet connection and cable with Power Over Ethernet helps simplify installations, minimizing the need for specialized or additional cables. The fully digital GigE protocol enables robust, high-bandwidth image transmission up to 100 metres from the point of welding, without any image quality degradation.
