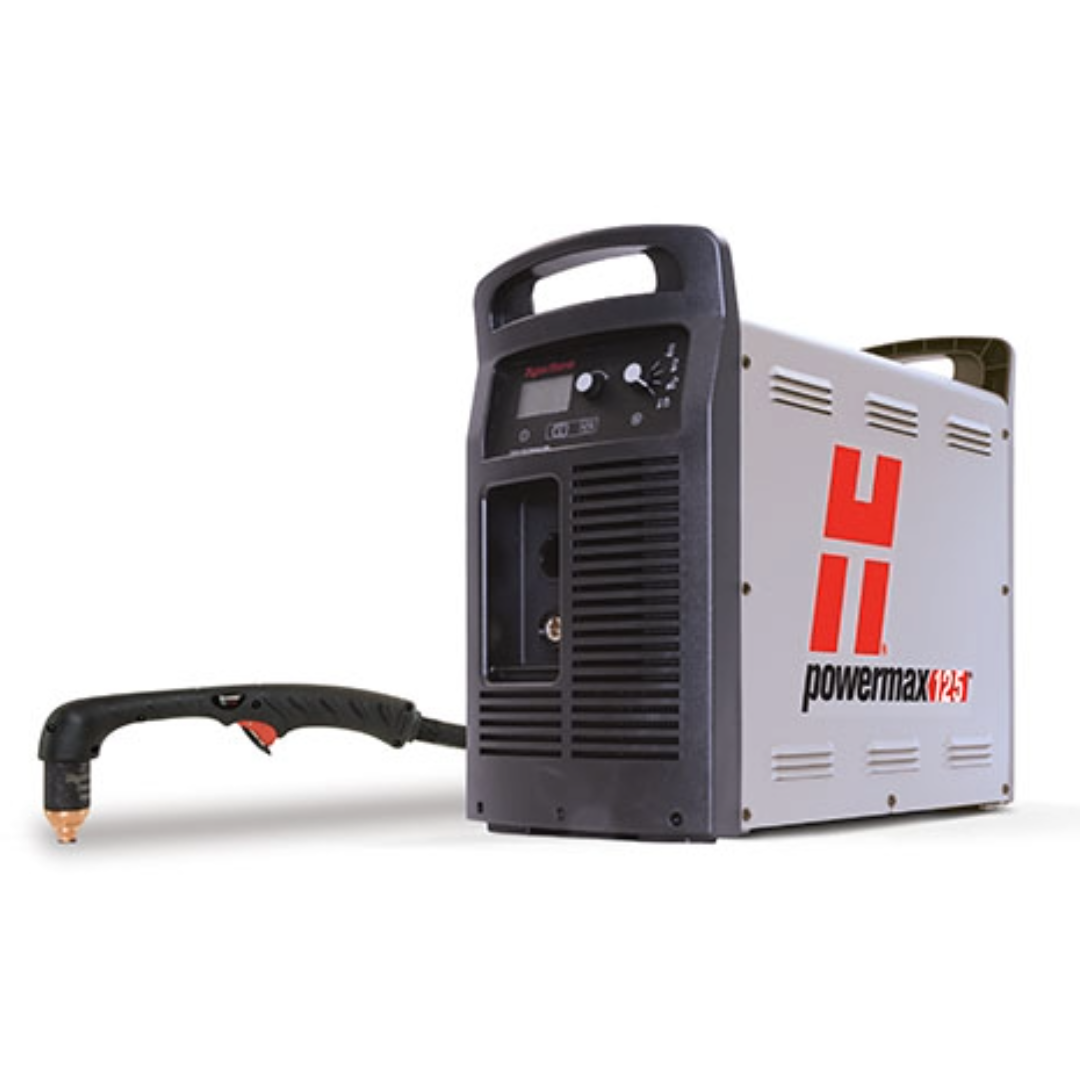

Hypertherm Powermax®125

Part of the Powermax® family, the Powermax125 features a 100% duty cycle for the most demanding hand cutting, mechanized or robotic cutting, or gouging.

The Powermax125® cuts thick metals fast and makes short work of your toughest cutting and gouging jobs. It offers a 100% duty cycle for maximum operation time, making it the preferred system for many mechanized or robotic cutting jobs. Smart Sense™ technology automatically adjusts the gas pressure so you can focus on the job and not the setup

Submit an Enquiry

Key Features

  • No need to change the air pressure – Smart Sense™ technology ensures it’s correctly set.
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting.
  • Superior cut and gouge quality lets you spend less time on grinding and edge preparation.
  • Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused.
  • 100% duty cycle maximizes your operating time Low operating costs.
  • Powermax plasma cutters are known to last decades in the field, minimizing maintenance and downtime.
  • Each Powermax component is tested to perform reliably in demanding conditions.
  •  SpringStart™ technology ensures consistent starting and a more reliable torch

Specifications

Weight with 7.6 m (25′) torch (kg)  48.9
Dimensions with handles (mm)  D 483 ;W 233 ; H 430



Cut Capacity  Thickness  Cut Speed
Recommended  38 mm (1-1/2″)

44 mm (1-3/4″)

457 mm/min ( 18 ipm)

250 mm/min (10 ipm)

Severance (hand cutting)  57 mm (2-1/4″)  125 mm/min (5 ipm)
Pierce *  25 mm (1″)
Gouge Capacity  Metal Removal Rate  Groove Profile
Typical gouge  12.52 kg/hr

(27.6 lbs/hr)

4.3–7.9 mm D x 6.1–9.9 mm W

(0.17–0.31″ D x 0.24–0.39″ W)
