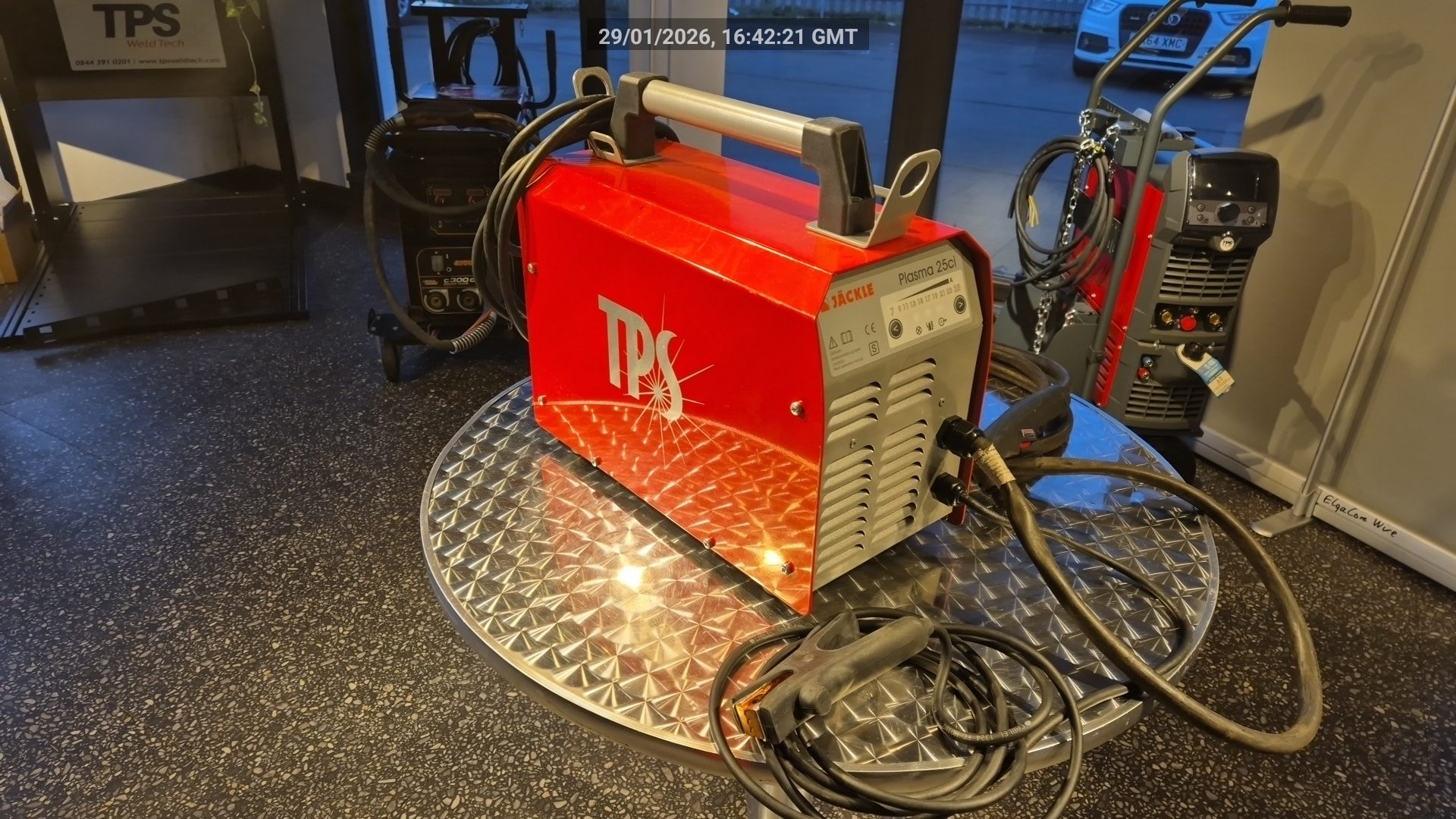

The Jackle Plasma 25CI is a compact plasma cutter engineered for precise, dependable metal cutting. Its inverter-based design delivers a stable arc for smooth, accurate cuts while keeping power consumption efficient. The lightweight, portable build makes it easy to move between the workshop and job site without sacrificing performance.
Designed for light fabrication, maintenance, and DIY work, the Plasma 25CI cuts common conductive metals cleanly with minimal slag and reduced cleanup time. Straightforward controls allow for fast setup and confident operation, making it a practical choice for users who want reliable cutting power in a small, easy-to-use machine.
| Supply Voltage | 1-phase 230 V, 50 Hz ±10% |
| Maximum Power Draw | 5.6 kVA |
| Fuse / Protection | 16 A slow |
| Cutting Current Range | 7–25 A |
| Max Open-Circuit Voltage | 460 V |
| Duty Cycle @ 25 A | 35% @ 90 V |
| Duty Cycle @ 20 A | 60% @ 88 V |
| Duty Cycle @ 15 A | 100% @ 86 V |
| Cooling / Air Requirement | Built-in compressor / 5 bar, ~45 L/min |
| Cutting Capacity (Clean Cut) | approx. 6 mm |
| Cutting Capacity (Severance) | up to ~8 mm |
| Protection Rating | IP23 |
| Dimensions (mm) | L 425 × W 210 × H 390 mm |
| Weight (kg) | 17 |
