Miller ArcReach® Heater

Miller ArcReach® Heater

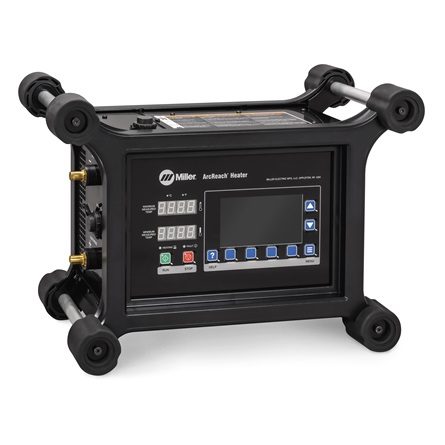

The Miller ArcReach® Heater is an air‑cooled induction heating system designed for preheating and bake‑out applications up to 600°F (315°C). It allows users to leverage existing on‑site ArcReach welding power sources to perform efficient, uniform, and safe induction heating without open flames. The system supports manual or USB‑loaded programs, records heating data automatically, and works with air‑cooled cables or quick wraps.

Submit an Enquiry

Key Features

  • Preheat and bake‑out capability up to 600°F (315°C)
  • Uses existing ArcReach welding power sources up to 200 ft away
  • Eliminates delays and dependency on third‑party heating contractors
  • Automatically records temperature data for quality control
  • Uniform heating using induction inside the material
  • Faster time‑to‑temperature compared to conventional methods
  • Improved safety with no open flames or hot elements
  • Flexible heating tools for various pipe diameters and plate lengths

Specifications

Maximum Preheat Temperature 600°F (315°C)
Input Power Operates on OCV 50–70 V
Output Current 200 A
Output Voltage 300 V
Rated Output 7.8 kW at 100% duty cycle
Source Current 33 A
Output Frequency 5–30 kHz
Dimensions (mm) H x 472 x W 285  D x 678
Net Weight (kg) 20 kg
